Airwheel Q3

A Groundbreaking Way To Commute

Welcome to the Future



PERFORMANCE

Airwheel is the state-of-the-art means of transportation adopting aerospace attitude control theory,
fuzzy software algorithm and gyroscope system to maintain balance by leaning forward and backward.
Riders can control the scooter to go forward, accelerate, decelerate, brake, etc. by leaning forward or backward.
Similar to the techniques of riding a bicycle, riders achieve balance via slightly tilting sideways.


Weight/kg

Charge Time/min

Maximum Speed/km/h

Range/km

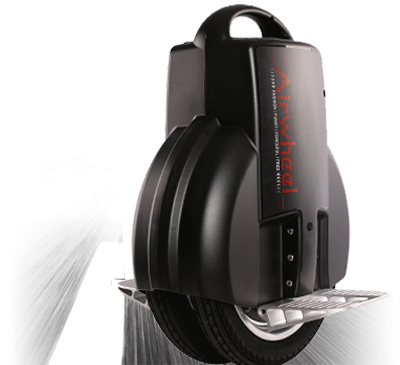

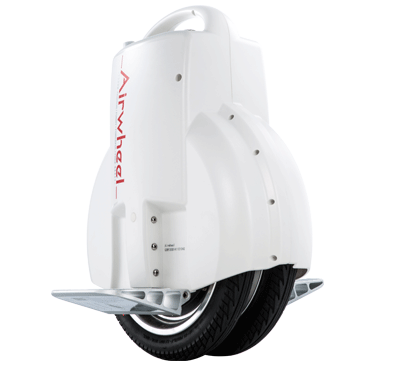

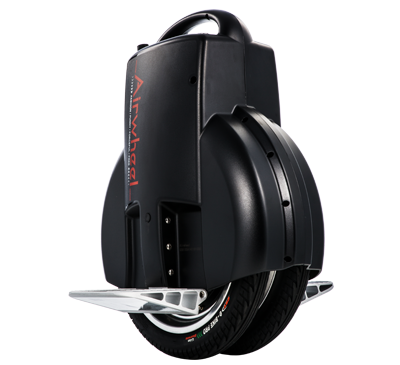

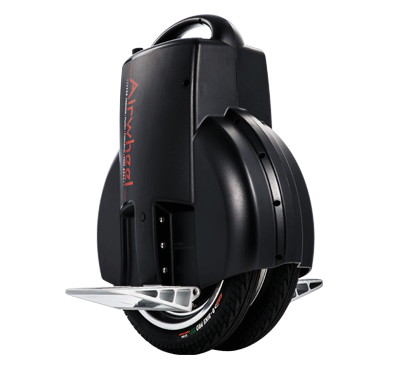

Airwheel Q3


Solid Reliability & Supreme Performace



Escort your way with six-times enhanced protection.
We value your trust and our own commitment.

Twin Wheel Hubs + Ultra-Widened Contact Plane =
Better Riding Stability



Intelligent Protection of Your Safety
Intelligent Response to Your Intention
Upgraded Acceleration Performance
Stronger Brake Force



Strengthened Protection Mechanism



When Airwheel tilts at over 45° sideways, e.g. when itl turns over, the control system will activate the tilting protection. The motor will stall immediately to prevent injuries.

Speed Control



To prevent injuries caused by overspeed, Airwheel sets a maximum speed. When speed exceeds 12km/h, the front end of the pedal will rise gradually and when the speed exceeds 16km/h, the pedal will pose a 10° angle to the leveling surface, which stop you from inclining further to accelerate.

Safety Alerts

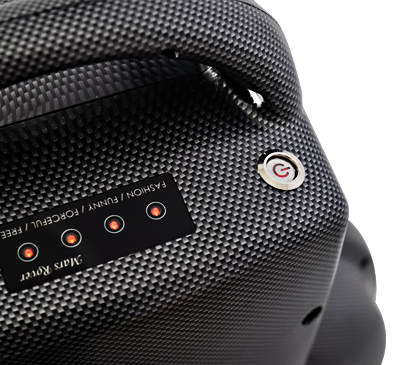

When the power level falls lower than 15%, all four lights will blink and the buzzer will beep. When the tilting protection activates, the buzzer will launch long beeps and the LED indicator on the power button will flash continuously.
In case of speeding, the buzzer wil launch long beeps and the rider will be stopped from further acceleration.

130Wh    170Wh    260Wh   340Wh

   Trender             Pioneer              Sportive         Superior

18km/h 120kg 13.7kg 90-250min
Maximum Speed Weight Limit Body Weight Charge Time

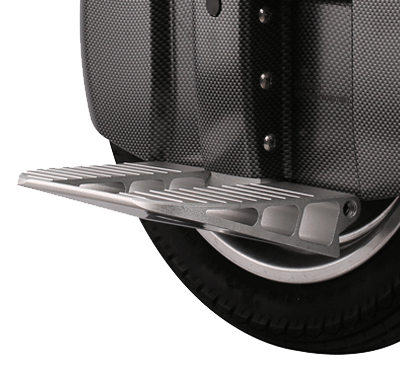

Aviation Aluminum Pedal



High Strength | Ultra-Widened | Better Fit
Exclusive Pedal Folding Tech 丨 Natural Adsorption

130Wh: About 90min   170Wh: About 120min


260Wh: About 180min  340Wh: About 250min

18km/h 120kg 13.7kg 90-250min
Maximum Speed Weight Limit Body Weight Charge Time
Maximum Speed About18km/h(alert activated at 12km/h)
Range per Charge About 18-65km(may vary with rider's weight,road condition and temperature)
Safe Climbing Angle About 15° (riders weighing 60kg get up to 18° )
Battery 130Wh / 170Wh / 260Wh / 340Wh Lithium (protection board with SOC equalization)
Temperature -10°C ~ 40°C (best at 20°~30°C)
Weight Limit 120Kg
Charger Voltage AC 220V 50-60Hz
Charge Time 130Wh: About 90 min (80% charged in 60 min)
170Wh: About 120min (80% charged in 90 min)
260Wh: About 180min (80% charged in 120 min)
340Wh: About 250min (80% charged in 160 min)

Size 518*408*200mm
Pedal Height 115mm (when dismounted)
Tire Size 14 inch
Main Body Weight 13.7kg(130Wh 170WH)
14.5kg(260Wh 340Wh)

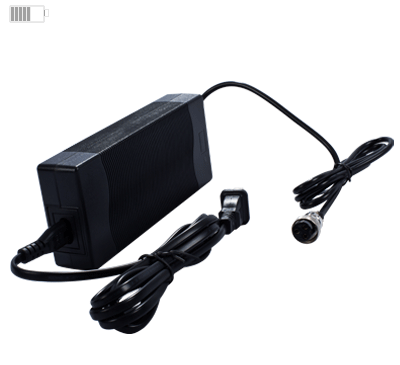

Standard Charger,Training Band, Extended Pump Nozzle
Optional Backpack, LED Flash Light, Pressure Gauge

Tilting Protection
When Airwheel tilts to over 45° sideways, e.g. when Airwheel turns over, the control system will activate tilting protection. The motor will stall immediately to prevent injuries.
Speed Control
To prevent injuries caused by speeding, Airwheel sets a maximum speed. When the speed exceeds 12km/h, the front end of the pedal will rise gradually and when the speed exceeds 16km/h, the pedal will pose a 10° angle to the leveling surface, which stop you from inclining further to accelerate.
Low Battery Protection
When power level falls lower than 15%, all four lights will blink and the buzzer will beep. The front end of the Pedal will sink to force you to decelerate and eventually stop. Please do not attempt to ride again, otherwise you may suffer a sudden loss of power and fall over.
Warning
When the power level falls lower than 15%, all four lights will blink and the buzzer will beep. When the tilting protection activates, the buzzer will launch long beeps and the LED indicator on the power button will flash continuously.The control system will stop you from further accelerating by beeping and rising the front end of pedal
